MaschioPack GmbH is always open to challenges, improvements, special requests and suggestions! Our ongoing goal and drive is to focus on delivering quality, innovation and flexibility resulting in 100% customer satisfaction.

We will be happy to help with any question about our products and services. Feel free to contact us by phone +49 2431 – 94 84 80 or fill in our contact form for further information. We will get back with you shortly

Discover our Products

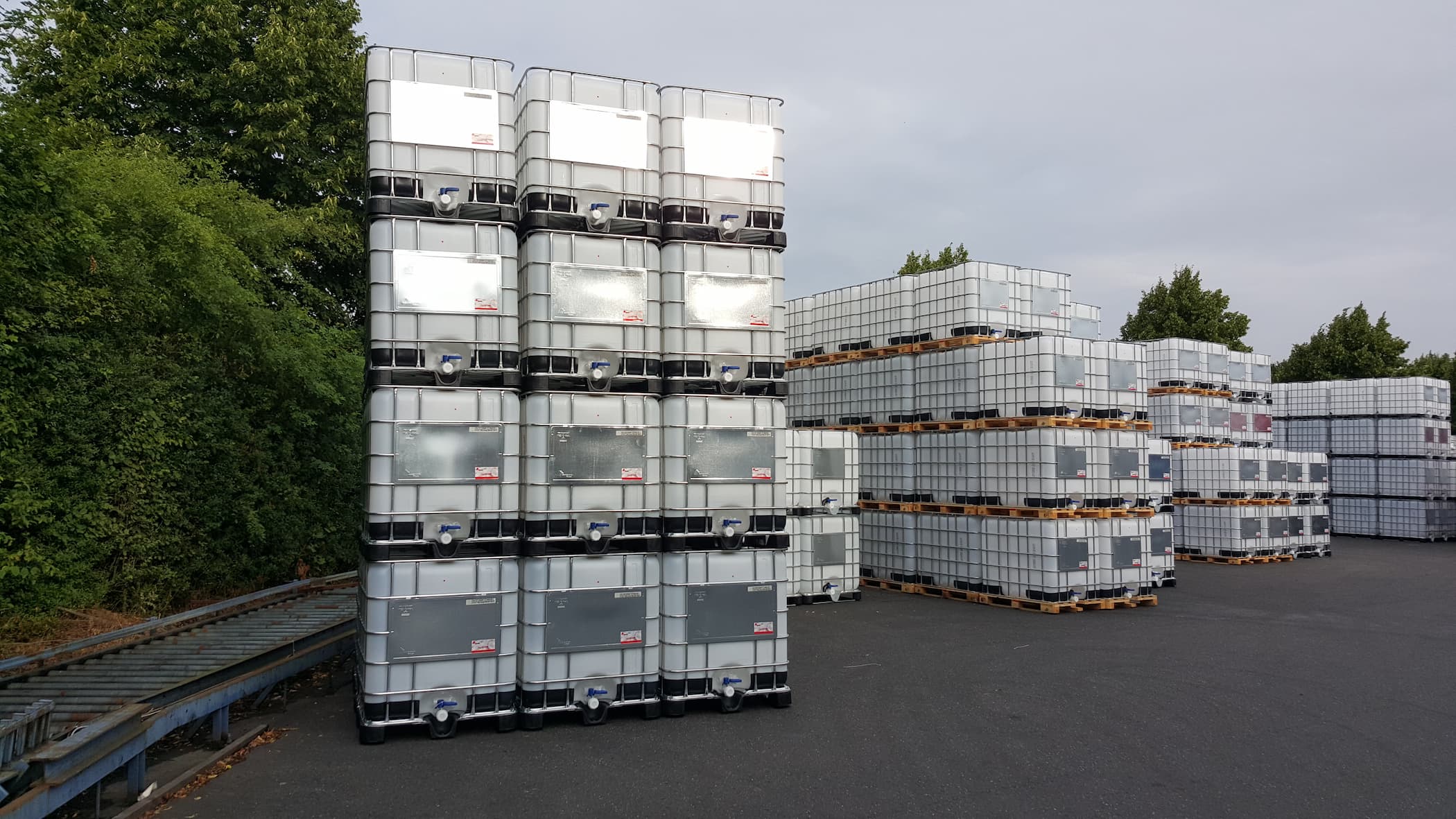

Stacks of IBC's outside | MaschioPack GmbH
Stacks of IBC's outside | MaschioPack GmbH

10 k+

IBC's
worldwide

Feel free to
contact us -
HERE

Quality is
our mission!

Hydraulic
Pressure Test

Air Pressure Test

Passion for better packaging

Our Products

IBC PM10 | MaschioPack GmbH

IBC – PM10

IBC PM10 UN | MaschioPack GmbH

IBC – PM10 UN

IBC PM11 | MaschioPack GmbH

IBC – PM11

IBC PM11 UN | MaschioPack GmbH

IBC – PM11 UN

IBC PM12 | MaschioPack GmbH

IBC – PM12

IBC PM12 UN | MaschioPack GmbH

IBC – PM12 UN

About Us

Having in our hands the latest high technological blow-molding machinery enables us to further expand our vision to deliver excellent quality on the market.
Learn more

Come work with us!

Jobs

Italia

Only in Italy

Aus Datenschutzgründen ist Google Maps bei uns standardmäßig deaktiviert.
Wünschen Sie Informationen zur Anfahrt oder möchten eine Route planen, so stimmen Sie der Nutzung von Google Maps durch unsere Webseite bitte zu. Beachten Sie hierzu die offiziellen Nutzungsbedingungen für Google Maps. Weitere Informationen dazu finden Sie auch in unserer Datenschutzerklärung.
Aus Datenschutzgründen ist Google Maps bei uns standardmäßig deaktiviert.
Wünschen Sie Informationen zur Anfahrt oder möchten eine Route planen, so stimmen Sie der Nutzung von Google Maps durch unsere Webseite bitte zu. Beachten Sie hierzu die offiziellen Nutzungsbedingungen für Google Maps. Weitere Informationen dazu finden Sie auch in unserer Datenschutzerklärung.
Aus Datenschutzgründen ist Google Maps bei uns standardmäßig deaktiviert.
Wünschen Sie Informationen zur Anfahrt oder möchten eine Route planen, so stimmen Sie der Nutzung von Google Maps durch unsere Webseite bitte zu. Beachten Sie hierzu die offiziellen Nutzungsbedingungen für Google Maps. Weitere Informationen dazu finden Sie auch in unserer Datenschutzerklärung.

Contact Us

Let’s get in touch

Feel free to contact us.

MASCHIO NS - Strategic Sourcing & Management Coordinator Technical Manager
phone: +39 (0) 029 096 92 18
fax: +39 (0) 029 20 20 371
email: antonella.brambilla[at]­maschioengineering [dot] com
04
General Inquiries
phone: +49 (0) 2431 – 948480
fax: +49 (0) 2431 948 4828
email: mail[at]maschiopack [dot] de
05
QUALITY

Quality is our mission!

The name Maschio in MaschioPack GmbH stands for quality, experience, flexibility, development and primarily for success. The customer is our most valuable asset and always in the center of the enterprise. MaschioPack GmbH is always open to challenges, improvements, special requests and suggestions! Our goal is to satisfy the customer 100%. Our ongoing goal and drive is to focus on delivering quality, innovation and flexibility resulting in 100% customer satisfaction.

Kosher Certified

kosher logo | MaschioPack GmbH

» watch Certificate (.pdf)

ISO certified

As a manufacturer and seller of industrial packaging MaschioPack GmbH is certified for ISO 9001:2008 by the TÜV Rheinland Cert GmbH.

» watch Certificate (.pdf)
» watch EQ-Statement / Environmental Policy (.pdf)

Our Quality Assurance Programm:

The secret to enable us to continuously meet the highest quality standards is to produce according to a tested and certified Quality Assurance Programm. Doing that gives our company the possibility to control, to measure and to maintain the quality, the production and performance of our products. For the production of our 1000L IBC containers the following tests are perform in accordance to the QA (Quality Assurance) Programm:

  • Hydraulic Pressure Test
  • Air Pressure Test (continuously)
IBC – PM10
IBC PM10 | MaschioPack GmbH

IBC – PM10

Total Dimensions:

Height: 1170 mm ± 5 mm
Base: 1200 mm x 1000 mm ± 5 mm
Total Weight 57,5 kg

Bottle:

Raw material: HDPE - high density polyethylene
Nominal Volume: 1085 L
Colour: Natural
Option: black and white

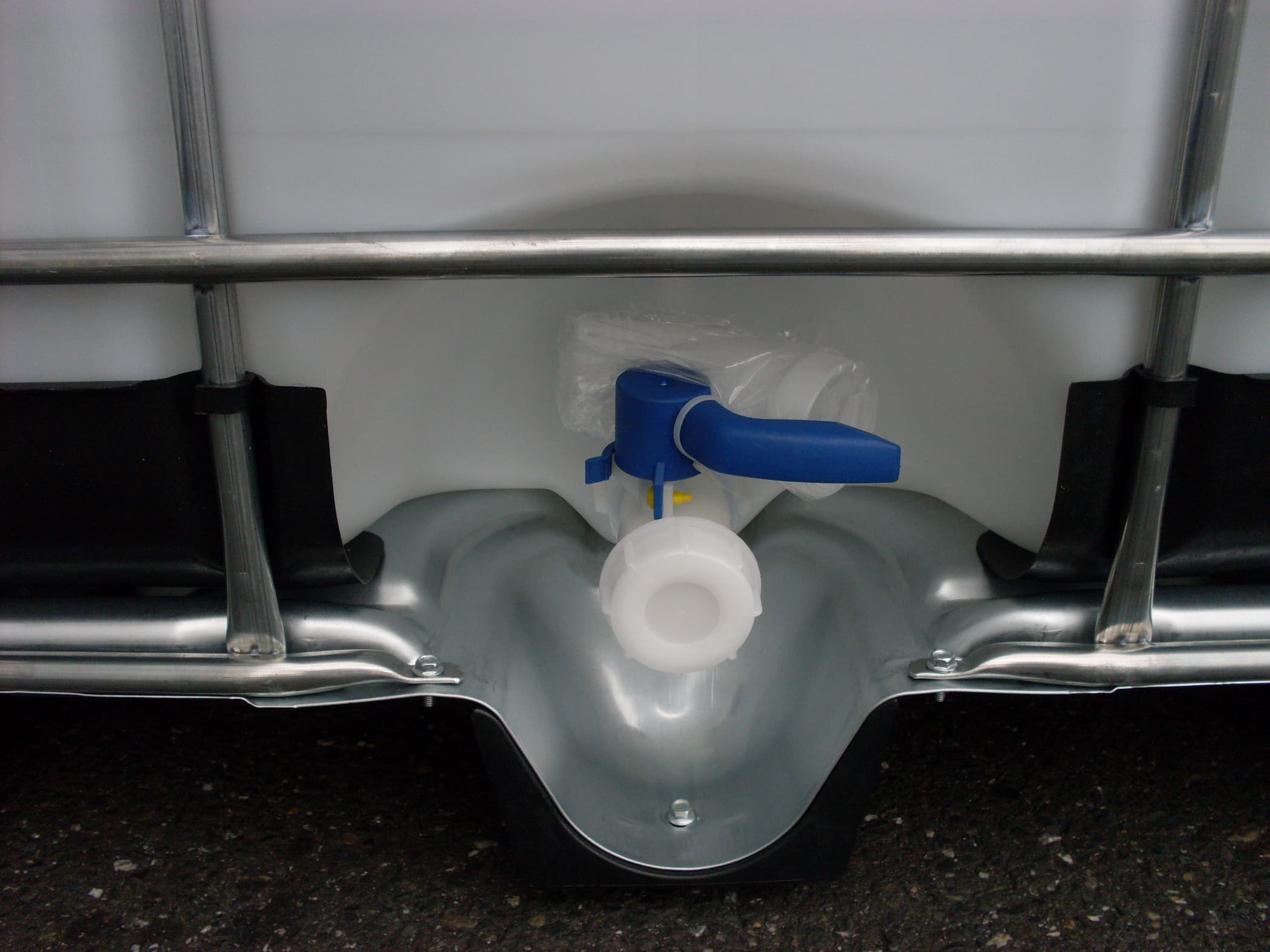

Valve Connection: Standard DN50 Butterfly Valve
Option: Butterfly DN 50 Valve with CAMLOCK male connection
Option: Camlock Valve DN50
  Ball Valve

Lid:

150 mm Standard: Black, Option: any other color
225 mm Standard: Black, Option: any other color
Standard Gasket: EPDM
Option Gasket Viton
Option degazing: Gore Valve D..
  G2" Plug with Gore-vent-system, Autobreather with push lock cap

Valve:

Butterfly Valve 2": DN50
Gasket: ETFE
Back seal ring Elastomer, Viton®
Connection: s60x6
Butterfly Valve 3": DN80
Connection: s80x8
Gasket: ETFE
Back seal ring Standard Viton®

Labeling Plate:

Small 400 mm x 240 mm
Medium:
Large:		 425 mm x 545 mm or
425 mm x 700 mm

Pallet:

Wooden pallet: 1200 mm x 1000 mm x 135 mm
Option: Heat-Treatment according to ISPM 15 Regulations

Cage:

Tube: Round vertical tubes 0,9 mm thickness
profiled round horizontal tubes 0,9 mm thickness
data sheet (.pdf)
IBC – PM10 UN
IBC PM10 UN | MaschioPack GmbH

IBC – PM10 UN

Full UN approved

Total Dimensions:

Height: 1170 mm ± 5 mm
Base: 1200 mm x 1000 mm ± 5 mm
Total Weight 60,5 kg

Bottle:

Raw material: HDPE - high density polyethylene
Nominal Volume: 1085 L
Colour: Natural
Option: black and white
Valve Connection: Standard DN50 Butterfly Valve
Option: Butterfly DN 50 Valve with CAMLOCK male connection
Option: Camlock Valve DN50
  Ball Valve

Lid:

150 mm Standard: Black, Option: any other color
225 mm Standard: Black, Option: any other color
Standard Gasket: EPDM

Valve:

Butterfly Valve 2": DN50
Gasket: ETFE
Back seal ring Elastomer, Viton®
Connection: s60x6
Butterfly Valve 3": DN80
Connection: s80x8
Gasket: ETFE
Back seal ring Standard Viton®

Labeling Plate:

Small 400 mm x 240 mm
Medium:
Large:		 425 mm x 545 mm or
425 mm x 700 mm

Pallet:

Wooden pallet: 1200 mm x 1000 mm x 135 mm
Option: Heat-Treatment according to ISPM 15 Regulations

Cage:

Tube: Round vertical tubes 0,9 mm thickness
profiled round horizontal tubes 0,9 mm thickness

UN approval Reference:

D/BAM 12737/31HA1
IBC – PM11
IBC PM11 | MaschioPack GmbH

IBC – PM11

Total Dimensions:

Height: 1170 mm ± 5 mm
Base: 1200 mm x 1000 mm ± 5 mm
Total Weight 49,5 kg

Bottle:

Raw material: HDPE - high density polyethylene
Nominal Volume: 1085 L
Colour: Natural
Option: black and white
Valve Connection: Standard DN50 Butterfly Valve
Option: Butterfly DN 50 Valve with CAMLOCK male connection
Option: Camlock Valve DN50
  Ball Valve

Lid:

150 mm Standard: Black, Option: any other color
225 mm Standard: Black, Option: any other color
Standard Gasket: EPDM
Option Gasket Viton
Option degazing: Gore Valve D..
  G2" Plug with Gore-vent-system, Autobreather with push lock cap

Valve:

Butterfly Valve 2": DN50
Gasket: ETFE
Back seal ring Elastomer, Viton®
Connection: s60x6
Butterfly Valve 3": DN80
Connection: s80x8
Gasket: ETFE
Back seal ring Standard Viton®

Labeling Plate:

Small 400 mm x 240 mm
Medium:
Large:		 425 mm x 545 mm or
425 mm x 700 mm

Pallet:

Composite frame pallet: 1200 mm x 1000 mm x 135 mm

Cage:

Tube: Round vertical tubes 0,9 mm thickness
profiled round horizontal tubes 0,9 mm thickness
data sheet (.pdf)
IBC – PM11 UN
IBC PM11 UN | MaschioPack GmbH

IBC – PM11 UN

Full UN approved

Total Dimensions:

Height: 1151 mm ± 5 mm
Base: 1200 mm x 1000 mm ± 5 mm
Total Weight 52,5 kg

Bottle:

Raw material: HDPE - high density polyethylene
Nominal Volume: 1085 L
Colour: Natural
Option: black and white
Valve Connection: Standard DN50 Butterfly Valve
Option: Butterfly DN 50 Valve with CAMLOCK male connection
Option: Camlock Valve DN50
  Ball Valve

Lid:

150 mm Standard: Black, Option: any other color
225 mm Standard: Black, Option: any other color
Standard Gasket: EPDM

Valve:

Butterfly Valve 2": DN50
Gasket: ETFE
Back seal ring Elastomer, Viton®
Connection: s60x6
Butterfly Valve 3": DN80
Connection: s80x8
Gasket: ETFE
Back seal ring Standard Viton®

Labeling Plate:

Small 400 mm x 240 mm
Medium:
Large:		 425 mm x 545 mm or
425 mm x 700 mm

Pallet:

Composite frame pallet: 1200 mm x 1000 mm x 135 mm

Cage:

Tube: Round vertical tubes 0,9 mm thickness
profiled round horizontal tubes 0,9 mm thickness
IBC – PM12
IBC PM12 | MaschioPack GmbH

IBC – PM12

Suitable for Food application

Total Dimensions:

Height: 1155 mm ± 5 mm
Base: 1200 mm x 1000 mm ± 5 mm
Total Weight 53,4 kg

Bottle:

Raw material: HDPE - high density polyethylene
Nominal Volume: 1085 L
Colour: Natural
Option: black and white
Valve Connection: Standard DN50 Butterfly Valve
Option: Butterfly DN 50 Valve with CAMLOCK male connection
Option: Camlock Valve DN50
  Ball Valve

Lid:

150 mm Standard: Black, Option: any other color
225 mm Standard: Black, Option: any other color
Standard Gasket: EPDM
Option Gasket Viton
Option degazing: Gore Valve D..
  G2" Plug with Gore-vent-system, Autobreather with push lock cap

Valve:

Butterfly Valve 2": DN50
Gasket: ETFE
Back seal ring Elastomer, Viton®
Connection: s60x6
Butterfly Valve 3": DN80
Connection: s80x8
Gasket: ETFE
Back seal ring Standard Viton®

Labeling Plate:

Small 400 mm x 240 mm
Medium:
Large:		 425 mm x 545 mm or
425 mm x 700 mm

Pallet:

Plastic skid pallet (4-way-entry): 1200 mm x 1000 mm x 135 mm

Cage:

Tube: Round vertical tubes 0,9 mm thickness
profiled round horizontal tubes 0,9 mm thickness
data sheet (.pdf)
IBC – PM12 UN
IBC PM12 UN | MaschioPack GmbH

IBC – PM12 UN

Full UN approved - Suitable for Food application

Total Dimensions:

Height: 1155 mm ± 5 mm
Base: 1200 mm x 1000 mm ± 5 mm
Total Weight 56,4 kg

Bottle:

Raw material
Raw material: HDPE - high density polyethylene
Nominal Volume: 1085 L
Colour: Natural
Option: black and white
Valve Connection: Standard DN50 Butterfly Valve
Option: Butterfly DN 50 Valve with CAMLOCK male connection
Option: Camlock Valve DN50
  Ball Valve

Lid:

150 mm Standard: Black, Option: any other color
225 mm Standard: Black, Option: any other color
Standard Gasket: EPDM

Valve:

Butterfly Valve 2": DN50
Gasket: ETFE
Back seal ring Elastomer, Viton®
Connection: s60x6
Butterfly Valve 3": DN80
Connection: s80x8
Gasket: ETFE
Back seal ring Standard Viton®

Labeling Plate:

Small 400 mm x 240 mm
Medium:
Large:		 425 mm x 545 mm or
425 mm x 700 mm

Pallet:

Plastic skid pallet (4-way-entry): 1200 mm x 1000 mm x 135 mm

Cage:

Tube: Round vertical tubes 0,9 mm thickness
profiled round horizontal tubes 0,9 mm thickness

Heating Systems:

Heating containers during or after transport >> more information

MASCHIOPACK – COMPANY

Company history

  • In 1972 Mr. Pietro Maschio set up the enterprise Mamor and started with the production of IBC's and plastic industrial packaging.
  • Within 30 years the enterprise grew from one production plant to seven more plants in Europe and another one in the US.
  • Mr. Maschio sold this company in 2003 and founded Maschio Engineering in Italy in 2004.
  • Because of the growing need for high quality IBC‘s, Mr. Maschio started to produce different types of IBC's in Italy in 2008. Maschio NS was born.
  • MaschioPack GmbH was founded in early 2009. In the brand new facility IBC’s and drums production lines were installed.
  • In early April 2012 the first IBC came from the production line at MaschioPack Iberica (a JV between MaschioPack & Bidones Egara).
IBC BACK SERVICE
Map with locations | MaschioPack GmbH

IBC Back Service

Recollect Network

Ecology and recycling is part of our daily business. Therefore we have an Recollect Network spread all over Europe. Purpose of our set-up return system is to reduce the amount of waste in the market, in order to reduce the ecological footprints of the IBC by striving for obtaining a high grade of recycling, and to reutilize the recycled plastic (HDPE) for pallet spare parts.

The IBC-Back Service is easily fulfilled at our customers or our customers‘ customer. Every IBC is identified with a label indicating all necessary contact details. Via fax, phone, email or via a pick-up request document that can be easily downloaded from this website.

Feel free to download our IBC-Back Service – Pickup Request and Declaration of Responsibility in english or italian.

IBC Back-Ticket Recollection Stations


Arrow own stations | Maschipack Own IBC Back-Ticket Recollection Stations
Arrow partner stations | Maschipack Partner IBC Back-Ticket Recollection Stations
